EASYdrive Sercos III
Product number:
JS-ED-Sercos
Notice:
Cannot be ordered individually!
Product information "EASYdrive Sercos III"
Sercos III interface card for EASYdrive.
The Sercos III bus system belongs to the fieldbus family. Usually the network
built in a linear structure. The maximum data transfer rate on a Sercos III bus
can be up to 100 Mbit / s. The fieldbus line is only connected via

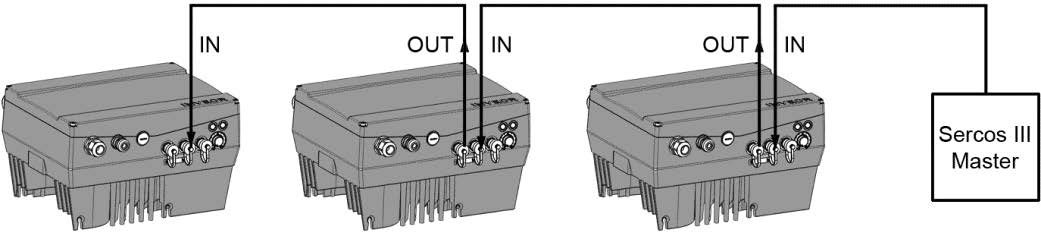

the two M12 connection sockets on the front. It should be noted that the
incoming bus line to the "In" socket and the outgoing line to the "Out" socket
can be connected. If it is the last participant, the "Out" socket is free
to leave - a terminating resistor is not required.
Including M12 connecting cable 2 m, M12 connector / RJ45 connector / 4-pin / 2 m / D-coded.
-The interface card is part of the converter and cannot be retrofitted.
All product photos are non-binding examples! Technical changes reserved.
Properties "EASYdrive Sercos III"
| Manufacturer: | EASYdrive |
|---|---|
| Protective roofs: | Interface cards |
| Series: | EASYdrive ED230 0,37kW - 1,5kW, EASYdrive ED400 0,55kW - 22,0kW |
| Typ: | sercos |
